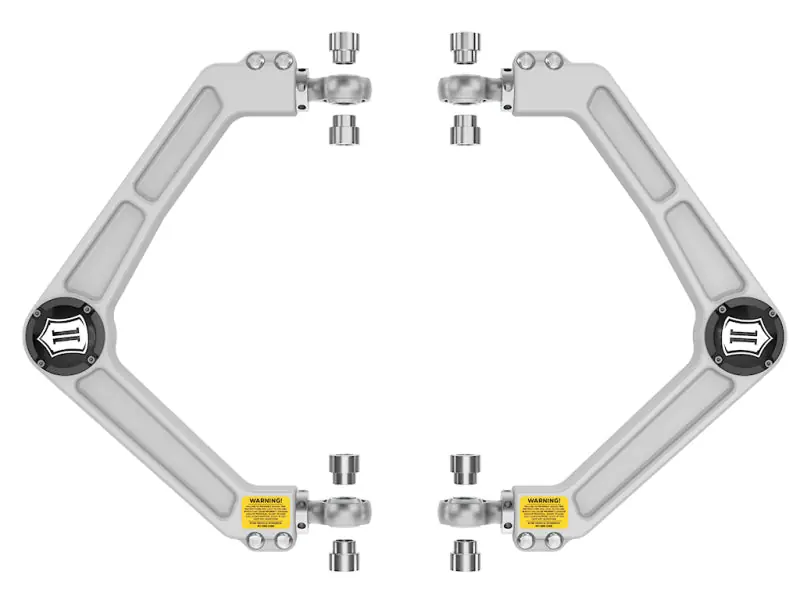

Buy Online ICON 2019+ Ram 1500 Billet Upper Control Arm Delta Joint Kit

Description

Manufacturer Part # : 218560DJ

Market Description

• These upper control arms feature ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
• This ICON billet aluminum upper control arm kit is designed to improve the overall performance of 2019-2023 Ram 1500 trucks with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the patented ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” Heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2019-2023 Ram 1500.

Product Description – Extended

• ICON billet aluminum upper control arm kit is designed to improve the overall performance of 2019-2023 Ram 1500 trucks with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance.
• 2019-UP RAM 1500 BILLET UPPER CONTROL ARM DELTA JOINT KIT

Associated Comments

• APPLICATION NOTE #183: May require sanding of coil bucket for clearance. Cycling suspension during install to verify clearance is recommended.
• APPLICATION NOTE #182: Designed for use with ICON coilovers and may not be compatible with other brands aftermarket coilovers.
• Recommended Aftermarket Tires: 35″ x 12.50″ (Fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.00″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.00″ Backspace / 0mm Offset
• APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models
• APPLICATION NOTE #105: Not for vehicles with rear factory air ride
• TECH NOTE: Not compatible with 2020-Up Ram 1500 TRX trims
• APPLICATION NOTE #184: Will not fit Ram 1500 TRX
• OEM Wheels & Tires Fitment: Yes

Features and Benefits

• Quality PTFE-lined ¾” FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Corrects suspension geometry and imptrecves handling on lifted or stock height trucks
• CNC machined 6061 billet aluminum construction with satin anodized finish
• Patented ICON Delta Joint allows maximum articulation without binding
• Quick, precise, on-vehicle adjustment for both caster and camber
• Built in O-ring sealed Delta Joint dust cover cap

Product Description – Short

• ICON 2019+ Ram 1500 Billet Upper Control Arm Delta Joint Kit
• UCA KIT

Product Description – Long

• 19-23 RAM 1500 BILLET UCA DJ KIT
• 19-UP RAM 1500 BILLET UCA DJ KIT

AAIA Part Type Description

Suspension Control Arm Kit

Product Description – Invoice

• RAM 1500 BILLET UCA DJ KIT
• 218560DJ

“>
