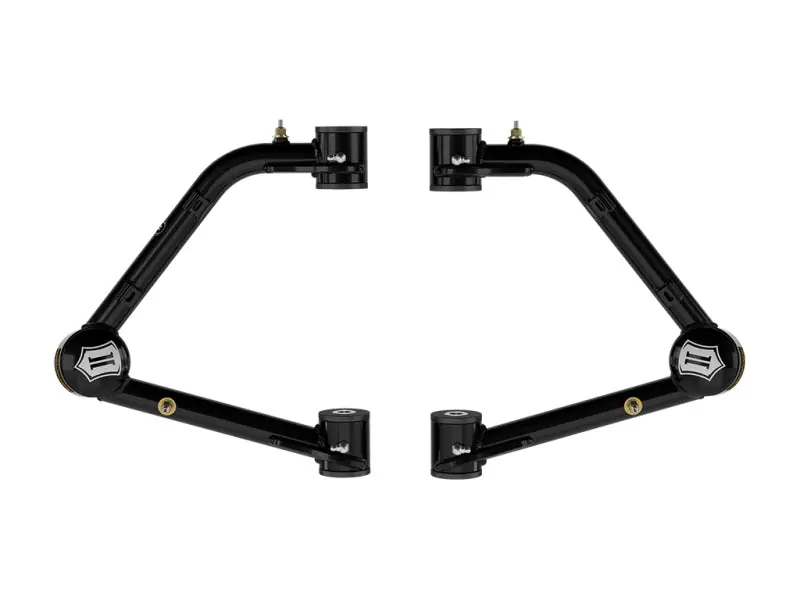

Exclusive Offer ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado Tubular UCA DJ Pro Kit

Description

Manufacturer Part # : 78660DJ

Market Description

• ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON’s innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
• These tubular steel upper control arms free up your 2023-2024 GMC Canyon/Chevrolet Colorado Trail Boss or ZR2’s front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind. It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2023-2024 GMC Canyon/Chevrolet Colorado Trail Boss or ZR2.

Product Description – Extended

ICON tubular UCAs feature 1026 DOM tube construction, polyurethane, and ICON’s rebuildable Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.

Associated Comments

• TECH NOTE: Compatible with 1.75-2.5″ front lift over stock on GMC Canyon AT4, Denali, Elevation, and Chevrolet Colorado Trail Boss
• TECH NOTE: Only compatible with OE steering knuckles. DO NOT install in combination with ANY aftermarket steering knuckles.
• APPLICATION NOTE #208: Will not fit Colorado ZR2 or Canyon AT4X equipped with Multimatic Jounce Control Dampers
• TECH NOTE: Compatible with .75-1.5″ front lift over stock on GMC Canyon AT4X and Chevrolet Colorado ZR2
• Recommended Aftermarket Wheels: 17×8.5″ w/ 5.46” Backspace / 18mm Offset
• APPLICATION NOTE #158: Only fits “Ultra-Wide Stance” vehicles
• TECH NOTE: Will not fit Chevrolet Colorado WT, LT or Z71
• Recommended Aftermarket Tires: 35″ x 12.50″
• Factory Wheels & Tires Fitment: Yes

Product Description – Short

• ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado Tubular UCA DJ Pro Kit
• TUBULAR UCA KIT

Features and Benefits

• Built in added caster for better handling on lifted vehicles
• Delta Joint PRO allows maximum articulation without binding
• 1026 DOM tube construction with black powder coat finish
• CNC machined housings for bushings and Delta Joint PRO
• Delta Joint PRO is 100% serviceable and rebuildable
• Includes billet dust caps for Delta Joint PRO
• Serviceable dual stage pivot bushings

Product Description – Long

23-24 GM CANYON/COLORADO TUBULAR UCA DJ PRO KIT

AAIA Part Type Description

Suspension Control Arm Kit

Product Description – Invoice

78660DJ

“>
