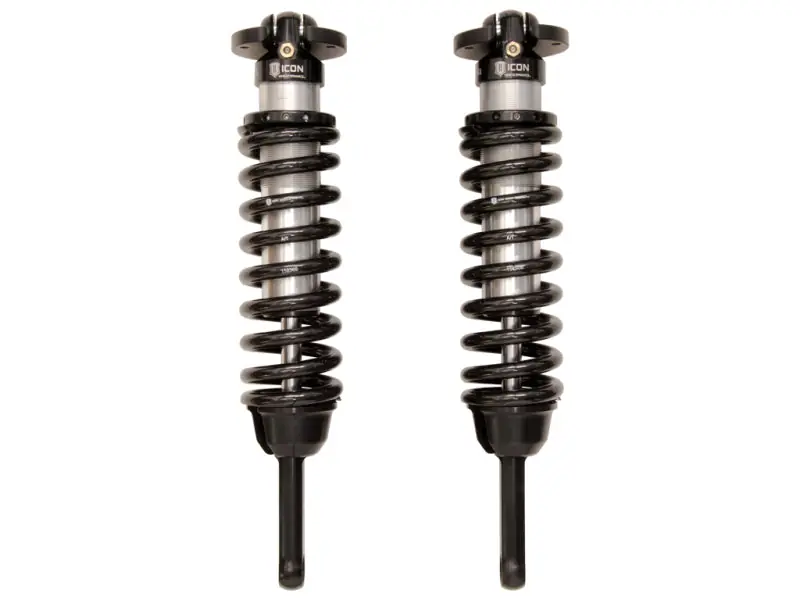

Free Delivery ICON 2010+ Toyota FJ/4Runner 2.5 Series Shocks VS IR Coilover Kit w/700lb Spring Rate

Description

Manufacturer Part # : 58646-700

Market Description

• ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible, while still being compatible with the vehicle’s stock front upper control arms, along with superior ride quality and suspension performance both on- and off-road. Coil springs with increased spring rate are included to help support added weight of accessories such as bumpers, winches, etc., and help ensure proper lift heights for heavier equipped vehicles. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460.
• ICON’s Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

Product Description – Extended

• These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain.
• 2010-2014 FJ CRUISER/2010-UP 4RUNNER/2010-UP GX460 2.5 VS INTERNAL RESERVOIR COILOVER KIT WITH 700LB COILS

Associated Comments

• TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
• APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• APPLICATION NOTE #55:Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• TECH NOTE: Standard travel length coilovers are compatible with stock front upper control arms
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 w/ 4.75″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 w/ 5″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 w/ 5″ Backspace / 0mm Offset
• Factory Wheels & Tires Fitment: Yes

Features and Benefits

• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Superior low speed control reduces body roll and increases on-road stability
• FK Rod End bearings provide extended longevity and minimal deflection
• Bolt-in design makes for an easy install into OEM shock location
• Corrosion resistant CAD plated shock body with 7/8″ shaft
• Adjustable coilovers yield 0-3.5″ of front lift height

Product Description – Short

• ICON 2010+ Toyota FJ/4Runner 2.5 Series Shocks VS IR Coilover Kit w/700lb Spring Rate
• COILOVER KIT

Product Description – Long

• 10-14 FJ/10-24 4RNR/10-23 GX 2.5 VS IR COILOVER KIT 700LB
• 10-UP FJ/4RNR/10-UP GX 2.5 VS IR COILOVER KIT 700LB

Product Description – Invoice

• 110-UP FJ/T4R/GX 2.5 VS IR CO KIT 700LB
• 58646-700

AAIA Part Type Description

Coilover Spring and Shock Assembly

“>
