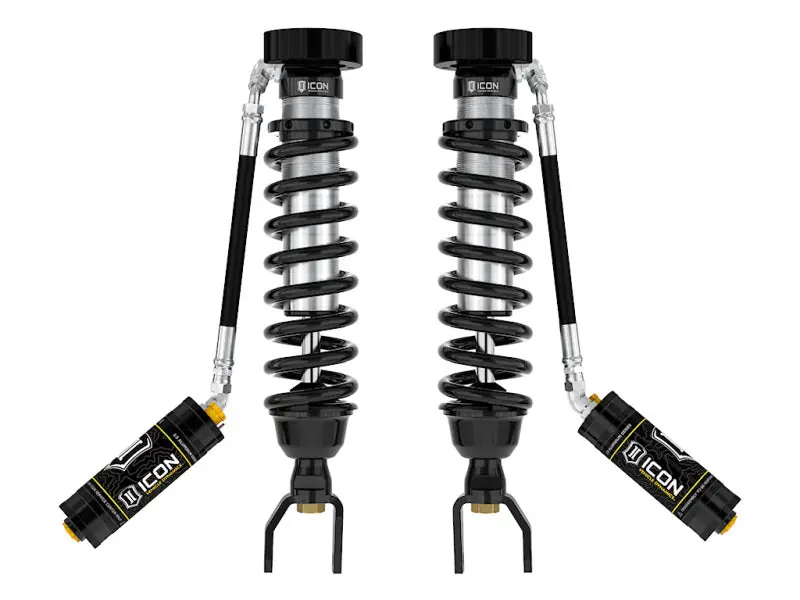

Handmade ICON 2019+ Ram 1500 2-3in. 2.5 VS CDCV Coilover Kit

Description

Manufacturer Part # : 211015C

Market Description

• ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
• ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

Product Description – Extended

• ICON 2.5 Series coilovers are an incredible upgrade for the front of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel while 2-3” of lift allows the use of larger, more aggressive wheel and tire combos.
• 2019-UP RAM 1500 2-3″ LIFT 2.5 VS CDCV REMOTE RESERVOIR COILOVER KIT

Features and Benefits

• Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
• Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
• 100% Bolt-on – no drilling, cutting or welding necessary for installation
• Corrosion resistant CAD plated shock body with 7/8″ diameter shaft
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• ICON CDCV equipped for external tuneability of your shocks
• High strength alloy CNC machined lower mounting clevis
• Adjustable from 2-3″ of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• ICON engineered coil springs

Associated Comments

• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Recommended Aftermarket Tires: 35″ x 12.50″ (fender trimming and modifications will be required.)
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
• TECH NOTE: 2019-2023 Ram 1500 Rebel will have lift height range of 1.25-2.25″ over stock
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.00″ Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.00″ Backspace / 0mm Offset
• APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks
• APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models
• APPLICATION NOTE #105: Not for vehicles with rear factory air ride
• TECH NOTE: Not compatible with 2020-Up Ram 1500 TRX trims
• TECH NOTE: Will not fit Ram 1500 TRX
• OEM Wheels & Tires Fitment: Yes

Product Description – Short

• ICON 2019+ Ram 1500 2-3in. 2.5 VS CDCV Coilover Kit
• COILOVER KIT

Product Description – Long

• 19-23 RAM 1500 2-3″ 2.5 VS CDCV COILOVER KIT
• 19-UP RAM 1500 2-3″ 2.5 VS CDCV COILOVER KIT

AAIA Part Type Description

Coilover Spring and Shock Assembly

Product Description – Invoice

• RAM 1500 2.5 VS CDCV COILOVER KIT
• 211015C

“>
