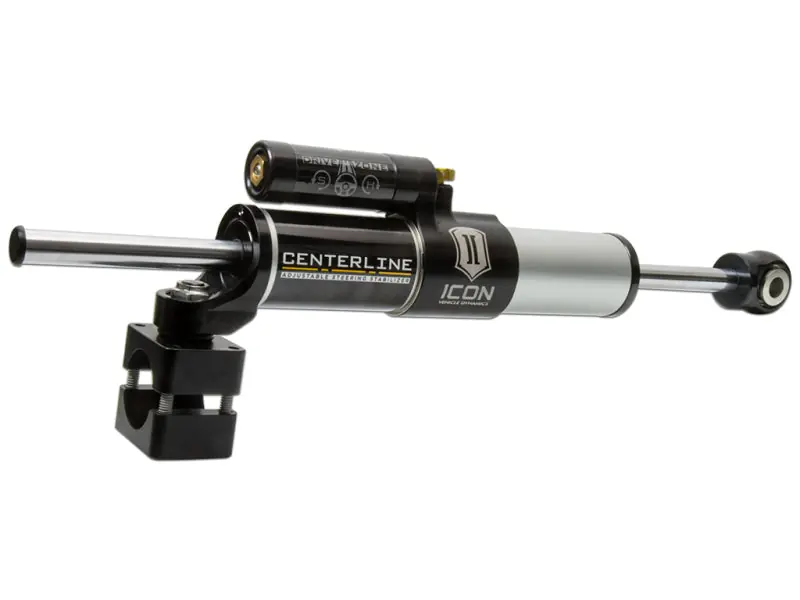

ICON 07-18 Jeep Wrangler JK Adj Thru Shaft Steering Stabilizer Kit Exclusive Offer

Description

Manufacturer Part # : 22020

Market Description

• Engineered to provide consistent steering damping with a through-shaft design, the new ICON Centerline Steering Stabilizer features an adjustable “Drive Zone” that can be custom-tailored to an individual’s desired steering feel. Developed with a wide range of aftermarket JK components in mind, this stabilizer is a high clearance design with a rotatable reservoir that allows for fitment on all ICON lift systems as well as most other lifts on the market. In addition to providing steering damping without the push or pull associated with a traditional stabilizer, the ICON Centerline Stabilizer features an adjustable “Drive Zone” with 9 levels of damping that affects 110 degrees of steering wheel input to the left or right of center. This allows the end user to customize how tight or how loose their vehicle handles in the middle of the steering range.
• This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance anda 5/8” chrome plated hardened steel shaft for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range , and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road. The CNC machined billet aluminum Centerline Stabilizer 1-3/8” tie rod clamp and rod end also feature FK Rod End bearings for precise and reliable operation.
• This new Centerline Steering Stabilizer shares the same great build features as our proven ICON 2.0 Aluminum Series shocks. These features include a clear anodized 6063 aluminum shock body for corrosion resistance and a 5/8” chrome plated hardened steel shaft for durability, premium 5WT shock oil that provides consistent damping characteristics across a wide operating temperature range , and a high temperature long wear seal pack that stands up to harsh conditions found both on and off-road. The CNC machined billet aluminum Centerline Stabilizer 1-3/8” tie rod clamp and rod end also feature FK Rod End bearings for precise and reliable operation.

Associated Comments

• TECH NOTE: 4.5″ kits and taller allow the reservoir of the stabilizer to be rotated straight up above the shock body. 3″ kits require the reservoir to be rotated down behind the shock body.
• TECH NOTE: This kit is intended for use with a 3-6″ lift and will not work on a stock vehicle. A minimum of 1″ bump stop spacer is required for adequate clearance.
• TECH NOTE: If using a heavy duty 1-5/8” aftermarket tie rod, oversized clamp kit (PN: 614525) must be used
• If using a heavy duty 1-5/8” aftermarket tie rod, oversized clamp kit (PN: 614525) must be used

Features and Benefits

• 6063 clear anodized aluminum shock body provides excellent corrosion resistance and superb heat dissipation
• Through shaft design eliminates push/pull sensation associated with traditional stabilizers
• High clearance design and rotatable reservoir for proper fitment on all lift heights
• 5WT shock oil for consistent suspension damping along a wide temperature range
• Adjustable “Drive Zone” with 9 clicks of damping adjustment
• Optional clamps for aftermarket heavy duty tie rods (1-5/8”)
• Provides symmetrical steering feel throughout input range
• Fully serviceable ICON 2.0 Aluminum Series shock
• Increased steering damping over stock unit
• 5/8” chrome plated hardened steel shaft
• FK Rod End bearings for precise function
• Mounts to OE 1-3/8” tie rod
• 100% bolt-on installation

Product Description – Extended

2007-2018 JEEP WRANGLER JK 2.0 CENTERLINE STABILIZER KIT ADJUSTABLE

Product Description – Short

• ICON 07-18 Jeep Wrangler JK Adj Thru Shaft Steering Stabilizer Kit
• JK THRU SHAFT STAB

Product Description – Long

07-18 JK 2.0 CENTERLINE STABILIZER KIT ADJUSTABLE

Product Description – Invoice

07-18 JK CENTERLINE STABILIZER KIT ADJ

AAIA Part Type Description

Steering Stabilizer

“>
