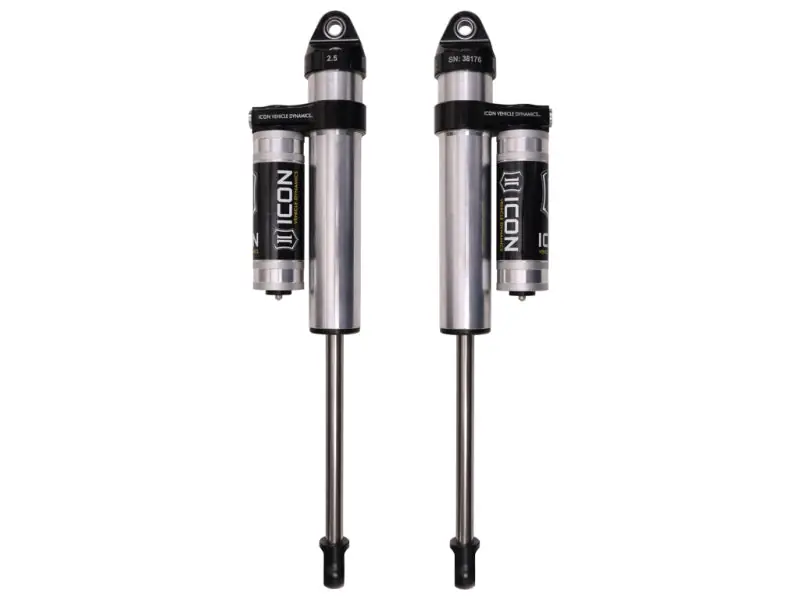

ICON 08-16 Ford F-250/F-350 Super Duty 4WD 4.5-9in Front Secondary 2.5 Series Shocks VS PB Order Now

Description

Manufacturer Part # : 61710P

Market Description

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Features and Benefits

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Rebuildable
• 100% Revalveable

Product Description – Short

• ICON 08-16 Ford F-250/F-350 Super Duty 4WD 4.5-9in Front Secondary 2.5 Series Shocks VS PB
• SECONDARY SHOCKS

Product Description – Extended

2008-2016 FSD 4WD 4.5-9″ FRONT SECONDARY 2.5 VS PIGGYBACK SHOCK PAIR

Product Description – Long

08-16 FSD 4WD 4.5-9″ FRONT SECONDARY 2.5 VS PB

Product Description – Invoice

08-16 FSD 4.5-9 FRNT SECNDRY 2.5 VS PB

AAIA Part Type Description

Suspension Shock Absorber Set

“>
