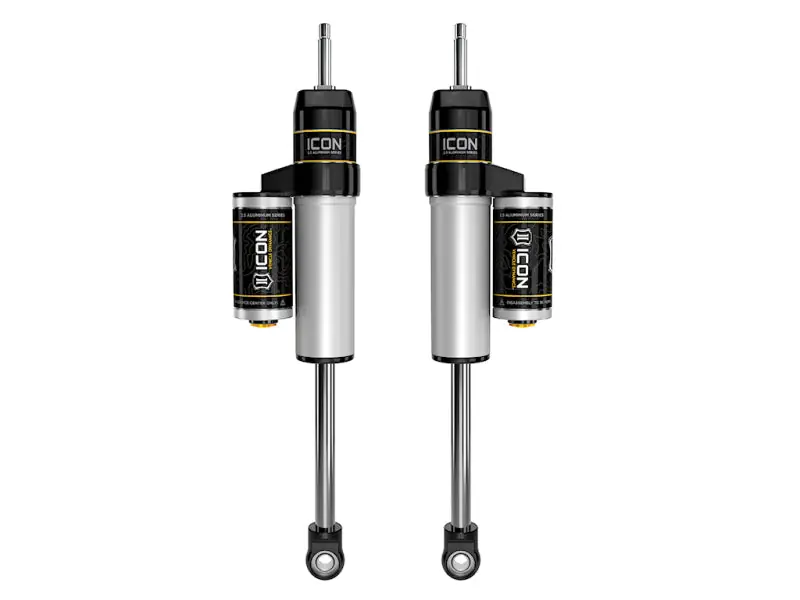

ICON 2005+ Ford F-250/F-350 Super Duty 4WD 2.5in Front 2.5 Series Shocks VS PB – Pair Time-Limited

Description

Manufacturer Part # : 67700P

Market Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV).

Product Description – Extended

• ICON 2.5 Series shocks are designed to give you outstanding performance off-road and a smooth ride on the street. With a vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
• 2005-UP FORD SUPER DUTY 4WD 0-2.5″ LIFT FRONT 2.5 VS PIGGYBACK SHOCK PAIR

Associated Comments

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• TECH NOTE: Compatible with 0-2.75” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package
• TECH NOTE: Compatible with 0-2” of front lift over stock of 2023-2025 F-250/F-350 4WD equipped with Tremor package
• TECH NOTE: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
• TECH NOTE: Compatible with 0-3″ of front lift over stock of 2023-2025 F-250/F-350 4WD without Tremor package
• Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ with fender trimming and modifications required)
• TECH NOTE: Can be installed as secondary shocks in OE location with ICON 2.5-3″ lift coilover conversions
• TECH NOTE: Compatible with 0-3” of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm Offset
• TECH NOTE: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-450 4WD
• TECH NOTE: Compatible with 0-3” of front lift over stock of 2023-2025 F-450 4WD
• APPLICATION NOTE #150: Shocks are fully serviceable
• APPLICATION NOTE #1: Only fits 4WD models

Features and Benefits

• One piece, hard anodaized, digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8″ diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

Product Description – Short

• ICON 2005+ Ford F-250/F-350 Super Duty 4WD 2.5in Front 2.5 Series Shocks VS PB – Pair
• SHOCK ABSORBERS

Product Description – Long

• 05-UP FSD 4WD 0-2.5″ FRONT 2.5 VS PB PAIR
• 05-25 FSD 4WD 0-2.5″ FRONT 2.5 VS PB PAIR

Product Description – Invoice

• FSD 4WD 2.5″ FRONT 0-2.5 VS PB PAIR
• 67700P

AAIA Part Type Description

Suspension Shock Absorber Set

“>
