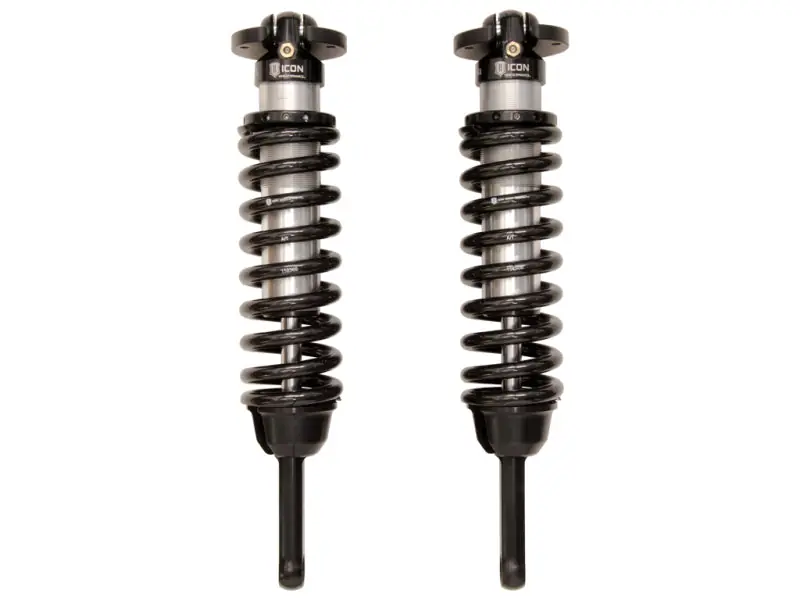

ICON 2005+ Toyota Tacoma Ext Travel 2.5 Series Shocks VS IR Coilover Kit Free Returns

Description

Manufacturer Part # : 58635

Market Description

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Product Description – Extended

• These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.
• 2005-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT

Features and Benefits

• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• Height-adjustable coilovers offer 0-3.5″ or 0-2.75″ of lift height adjustment depending on year model
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Extended Travel length requires installation of aftermarket front upper control arms
• Superior low speed control reduces body roll and increases on-road stability
• FK Rod End bearings provide extended longevity and minimal deflection
• Corrosion resistant CAD plated shock body with 7/8″ diameter shaft
• Bolt-in design makes for an easy install into OEM shock location

Associated Comments

• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
• TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25″ over stock
• TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25″ over stock
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
• TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5″ over stock
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5.00” Backspace / 0mm Offset
• APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
• APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
• TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
• APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
• OEM Wheels & Tires Fitment: Yes

Product Description – Short

• ICON 2005+ Toyota Tacoma Ext Travel 2.5 Series Shocks VS IR Coilover Kit
• TACOMA COILOVERS

Product Description – Long

• 05-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT
• 05-23 TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT

AAIA Part Type Description

Coilover Spring and Shock Assembly

Product Description – Invoice

• 05-UP TACOMA EXT 2.5 VS IR CO KIT
• 58635

“>
