ICON 2005+ Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR Coilover Kit w/700lb Spring Rate Free Returns

Description

Manufacturer Part # : 58735-700

Market Description

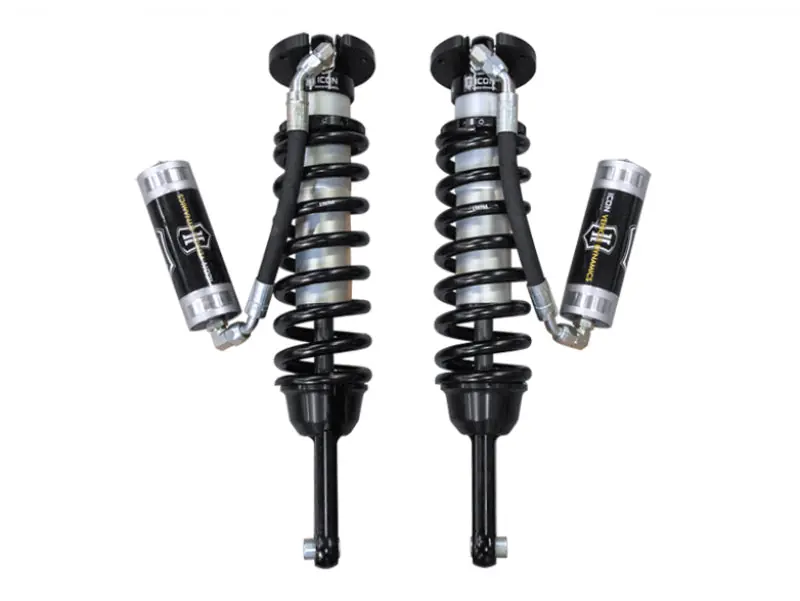

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Product Description – Extended

• These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the addition of aftermarket upper control arms. They feature remote reservoirs, are vehicle specific, 100% rebuildable, and 100% revalveable.
• 2005-UP TACOMA EXT TRAVEL 2.5 VS REMOTE RESERVOIR COILOVER KIT 700LB COILS

Associated Comments

• TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
• TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25″ over stock
• TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25″ over stock
• APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
• TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5″ over stock
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5.00” Backspace / 0mm Offset
• APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
• TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
• APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
• OEM Wheels & Tires Fitment: Yes

Features and Benefits

• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• Height-adjustable coilovers offer 0-3.5″ or 0-2.75″ of lift height adjustment depending on year model
• Extended Travel length requires installation of aftermarket front upper control arms
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• Vehicle specific tuned for superior shock damping and control
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• Kit Includes Sway bar relocation brackets
• 5/8″ PTFE-lined spherical bearings
• Billet aluminum upper mount
• CAD-plated threaded body
• Completely re-buildable

Product Description – Short

• ICON 2005+ Toyota Tacoma Ext Travel 2.5 Series Shocks VS RR Coilover Kit w/700lb Spring Rate
• TACOMA COILOVERS
• COILOVER KIT

Product Description – Long

• 05-UP TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB
• 05-23 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB

Product Description – Invoice

• 05-UP TACOMA EXT 2.5 VS RR CO KIT 700LB
• 58735-700

AAIA Part Type Description

Coilover Spring and Shock Assembly

“>
