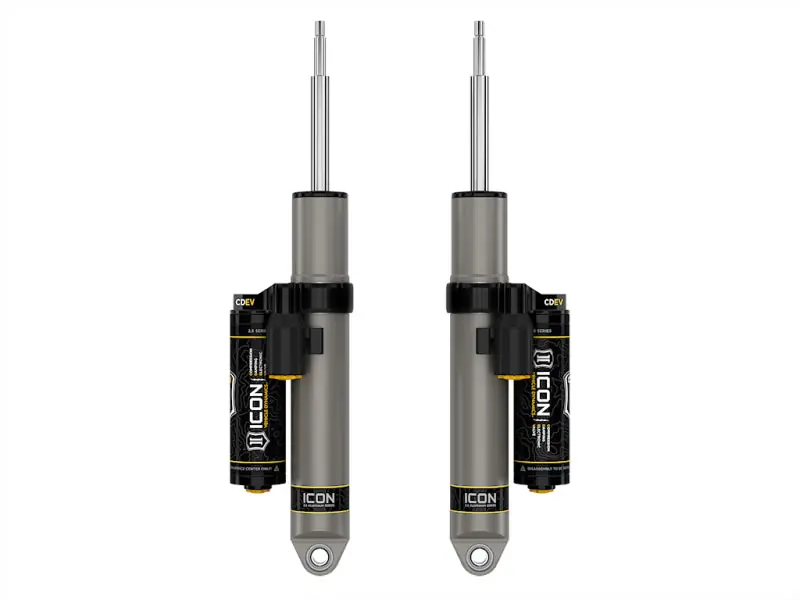

ICON 2014+ Ram 2500 0in Coil / 3in Air Ride Rear 2.5 Series Shocks VS PB CDEV – Pair Trending

Description

Manufacturer Part # : 217704EP

Market Description

• ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
• Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Features and Benefits

• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

Associated Comments

• TECH NOTE: Compatible with 3-4” of rear lift over stock on 14-UP Ram 2500 4WD equipped with OE Automatic-Leveling Rear Air-Suspension system
• TECH NOTE: Also requires installation of IIC part number 213500 and CDEV front shock part numbers 217802EP or 217803EP
• TECH NOTE: Compatible with 0-1” of rear lift over stock on 14-UP Ram 2500 4WD equipped with rear coil springs

Product Description – Extended

2014-UP RAM 2500 0″ LIFT COIL / 3″ LIFT AIR RIDE REAR 2.5 VS PIGGYBACK CDEV SHOCK ABSORBER PAIR

Product Description – Short

• ICON 2014+ Ram 2500 0in Coil / 3in Air Ride Rear 2.5 Series Shocks VS PB CDEV – Pair
• CDEV SHOCK ABSORBERS

Product Description – Long

14-UP RAM 2500 0″ COIL / 3″ AIR RIDE REAR 2.5 VS PB CDEV PAIR

Product Description – Invoice

RAM 2500 0″ COIL/3″ AIR REAR CDEV PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

“>
