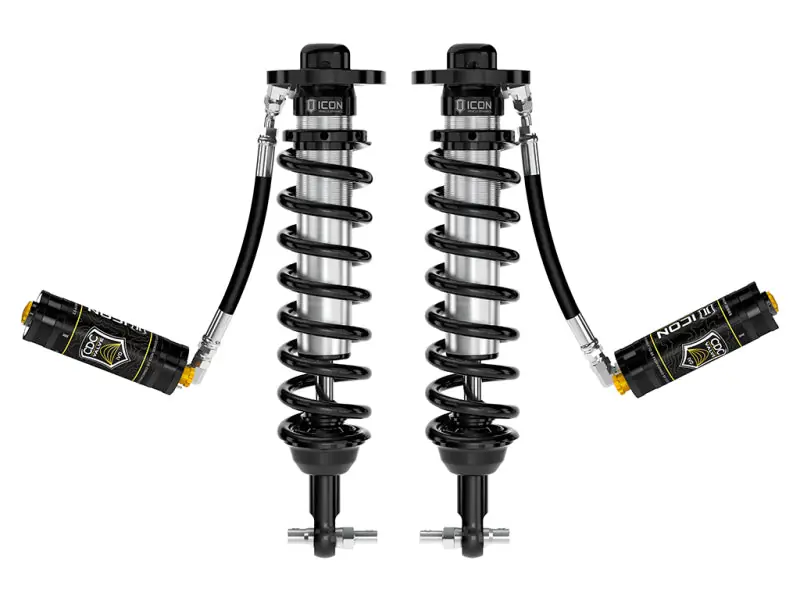

ICON 21-23 Ford F150 Tremor 2.5-3in 2.5 Series VS RR CDCV Coilover Kit Worldwide Shipping

Description

Manufacturer Part # : 91824C

Market Description

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON’s Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options.ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150.

Product Description – Extended

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

Associated Comments

• Factory Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Tires: 34″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 3.25-4.25″ over stock
• TECH NOTE: Models equipped with gasoline/flex fuel engines will have lift height range of 3.5-4.5″ over stock
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 3-4″ over stock
• TECH NOTE: All F-150 submodels except Tremor also require ICON Front Knuckle Kit part number 94000.
• APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm Offset
• TECH NOTE: F-150 Tremor will have have lift height range of 2.5-3″ over stock
• TECH NOTE: Only compatible with F-150 Tremor and 4-wheel drive (4WD) models
• APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required
• TECH NOTE: Not compatible with models equipped with BlueCruise
• TECH NOTE: Not compatible with F-150 Raptor

Features and Benefits

• Adjustable for 2.5-3″ of lift height over stock on F-150 Tremor or 3.5-4.5″ over stock on other F-150 sub-models with ICON Front Knuckle Kit
• Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• 100% Bolt-on – no drilling, cutting, or welding necessary for installation
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Corrosion resistant CAD plated shock body with 7/8″ shaft
• 6061 Aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• High strength alloy CNC machined lower bar pin
• ICON engineered coil Springs

Product Description – Short

• ICON 21-23 Ford F150 Tremor 2.5-3in 2.5 Series VS RR CDCV Coilover Kit
• COILOVER KIT

Product Description – Long

21-24 F150 TREMOR 2.5-3″ 2.5 VS RR CDCV COILOVER KIT

AAIA Part Type Description

Coilover Spring and Shock Assembly

Product Description – Invoice

91824C

“>
