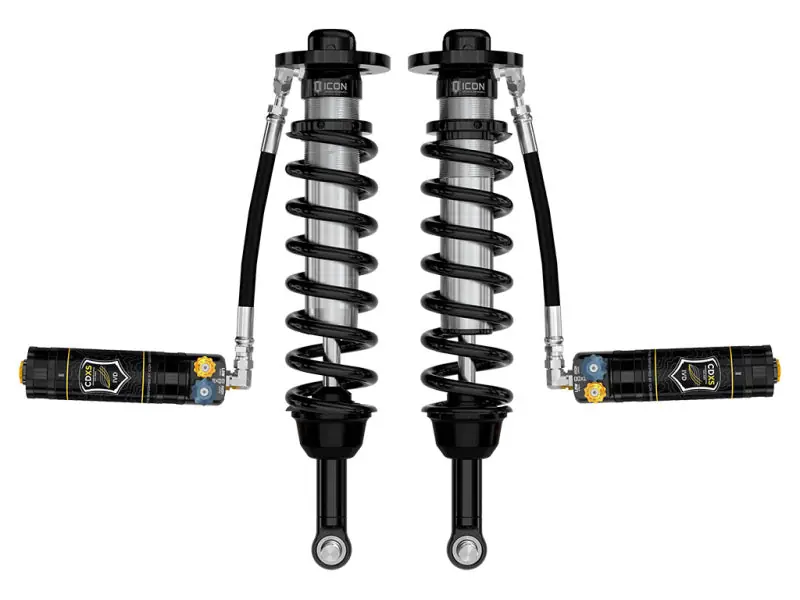

ICON 21-24 Ford D-150 4WD 2.5 Series VS RR CDXS Coilover Kit Mega Sale

Description

Manufacturer Part # : 91825X

Market Description

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON’s exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

Product Description – Extended

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

Associated Comments

• Factory Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Tires: 34″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 2.5-3.25″ over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 2.25-3″ over stock
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
• Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm Offset
• APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required
• TECH NOTE: Not compatible with models equipped with BlueCruise
• TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models

Features and Benefits

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Corrosion resistant CAD plated shock bodies with 7/8″ induction hardened, chrome plated shafts
• External reservoirs to attain cooler operating temperatures during extended off-road use
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on – no cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• 6061 Aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Adjustable for 2.75-3.5″ of front lift over stock
• High strength alloy CNC machined lower bar pins
• ICON engineered coil springs

Product Description – Short

• ICON 21-24 Ford D-150 4WD 2.5 Series VS RR CDXS Coilover Kit
• COILOVER KIT

Product Description – Long

21-24 F150 4WD 3″ LIFT 2.5 VS RR CDXS COILOVER KIT

AAIA Part Type Description

Coilover Spring and Shock Assembly

Product Description – Invoice

91825X

“>
