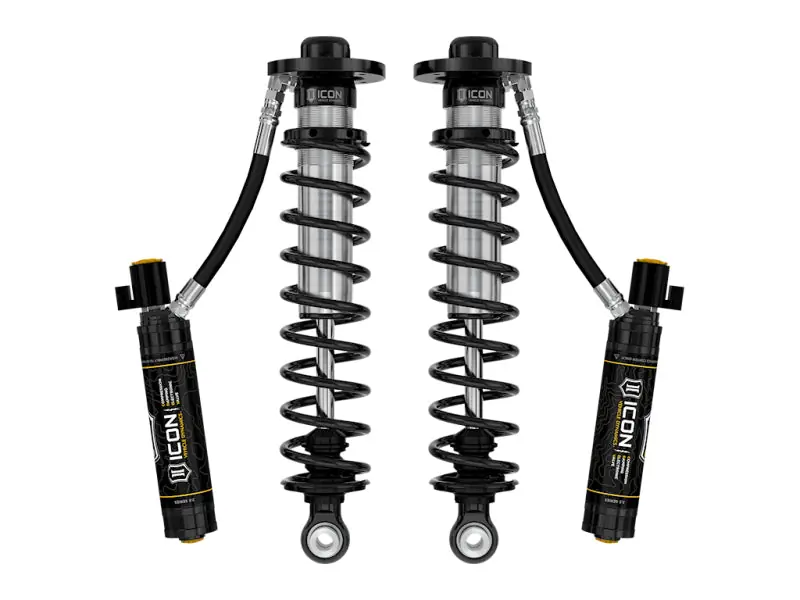

ICON 22-23 Ford F150 Lightning Lowered Front 2.5 VS RR CDEV Coilover Kit Buy Direct

Description

Manufacturer Part # : 91836E

Market Description

• Prepare for intense driving conditions with confidence, as the remote reservoirs significantly increase shock oil volume and heat dissipation surface area, resisting overheating and cavitation under aggressive use, preventing damper fade. Additionally, the ICON CDE Valve upgrade is included, providing easy ride tuning capabilities from inside your vehicle. The Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that regulates oil flow into the reservoir, reacting in less than 40ms to make accurate adjustments for varying terrain. The hydraulic circuits of CDEV are meticulously tailored per application, offering the highest resolution and dynamic range specific to your F-150 Lightning.
• Experience unmatched performance with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV, the ultimate upgrade for your 2022-2023 Ford F-150 Lightning. These coilovers deliver an aggressive stance, lower center of gravity, and unparalleled handling characteristics, thanks to their adjustable rear lowered height range of 0-4″ under stock. With ICON’s vehicle specific shock length, valving, and the larger 2.5″ shock body with increased piston area, you will enjoy maximum wheel travel, exceptional ride quality, and superior suspension performance that surpasses stock components.
• Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV front coilovers, your vehicle’s control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.

Product Description – Extended

ICON’s vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance with a lowered stance.

Features and Benefits

• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Corrosion resistant CAD plated shock bodies with 7/8″ induction hardened, chrome plated shafts
• Vehicle specific tuned front shocks for superior shock damping and vehicle control
• ICON engineered coil springs with optimized spring rates for improved ride quality
• Remote reservoir to maintain cooler operating temperatures and house CDE Valves
• Height-adjustable coilovers offer 0-4″ of lowered height adjustment
• FK Rod End bearings for extended longevity and minimal deflection
• 100% Bolt-on – no cutting or welding necessary for installation
• 6061 Aircraft grade aluminum CNC machined components
• Increased compression travel compared to stock
• Fully rebuildable and re-tunable

Associated Comments

• Recommended Aftermarket Tires: 33″ x 12.00″ (Larger tires may fit but fender trimming and modifications may be required)
• TECH NOTE: Lowering rear past 3.5″ below stock may reduce ride quality due to limited distance to bump stop engagement
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LOWERED HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• TECH NOTE: Also requires installation of IIC kit (Part # 93501) and CDEV front coilovers (Part # 91831E)
• Recommended Aftermarket Wheels: 20×9″ w/ 6” Backspace / 25mm Offset
• OEM Wheels & Tires Fitment: Yes

Product Description – Short

• ICON 22-23 Ford F150 Lightning Lowered Front 2.5 VS RR CDEV Coilover Kit
• CDEV COILOVER KIT

Product Description – Long

22-23 FORD F150 LIGHTNING LOWERED REAR 2.5 VS RR CDEV COILOVER KIT

AAIA Part Type Description

Coilover Spring and Shock Assembly

Product Description – Invoice

91836E

“>
