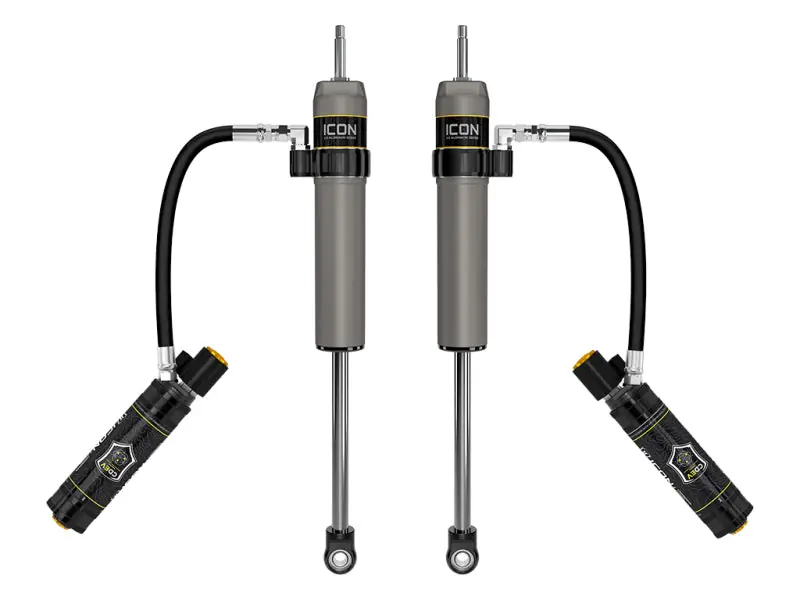

ICON 22-23 Toyota Tundra Rear 2.5 Series Shocks VS RR CDEV – Pair Hot Deal

Description

Manufacturer Part # : 57840EP

Market Description

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Product Description – Extended

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs with CDEV and are 100% rebuildable/revalveable.

Features and Benefits

• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

Associated Comments

• TECH NOTE: Compatible with 0-3.5” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
• TECH NOTE: Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1″ lift on TRD Tundras equipped with rear coil springs
• TECH NOTE: Compatible with 0-4” of rear lift on non-TRD Sequoias equipped with rear coil springs or 0-2″ lift on TRD Sequoias
• APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
• APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
• APPLICATION NOTE #204: Also requires installation of applicable IIC kit and CDEV front shocks

Product Description – Short

• ICON 22-23 Toyota Tundra Rear 2.5 Series Shocks VS RR CDEV – Pair
• SHOCK ABSORBER PAIR

Product Description – Long

22-25 TUNDRA 0-1.5″/23-25 SEQUOIA 0-4″ REAR 2.5 VS CDEV RR PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

Product Description – Invoice

57840EP

“>
