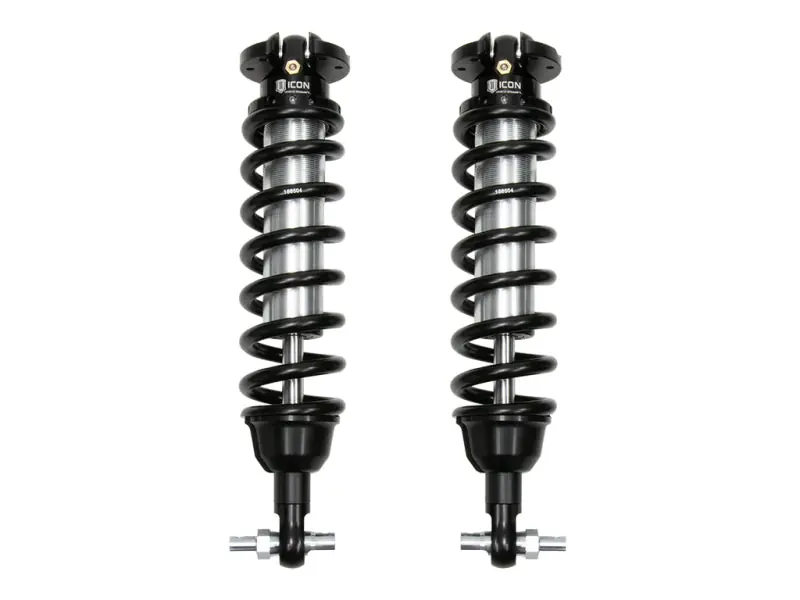

Limited Time ICON 2019+ Ford Ranger Ext Travel 2.5 Series Shocks VS IR Coilover Kit

Description

Manufacturer Part # : 91255

Market Description

• ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific valving along with the larger 2.5” shock body and increased piston area over stock components yield superior ride quality and suspension performance both on- and off-road. Their extended travel length requires ICON front upper control arms and yields increased front wheel travel compared to ICON standard travel coilovers for maximum suspension performance. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.
• ICON’s Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable

Product Description – Extended

• ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
• 2019-UP FORD RANGER 4WD EXTENDED TRAVEL 2.5 VS INTERNAL RESERVOIR COILOVER KIT

Associated Comments

• TECH NOTE: Extended travel coilovers also require aftermarket front upper control arms. DO NOT install in conjunction with OE front upper control arms.
• Recommended Aftermarket Tires: 285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Tires: 33″x11.25″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5″ over stock.
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6.00” Backspace / 25mm Offset
• APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
• TECH NOTE: Not compatible with Ranger Raptor.
• Factory Wheels & Tires Fitment: Yes

Features and Benefits

• Extended travel length requires ICON upper control arms but offers more wheel travel and improved performance
• Vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Superior low speed control reduces body roll and increases on-road stability
• Corrosion resistant CAD plated shock body with 7/8″ diameter shaft
• Bolt-in design makes for an easy install into OEM shock location
• Adjustable coilovers yield 0-3.5” of front lift height

Product Description – Short

• ICON 2019+ Ford Ranger Ext Travel 2.5 Series Shocks VS IR Coilover Kit
• EXT COILOVER KIT
• COILOVER KIT

Product Description – Long

• 2019-UP RANGER 4WD EXT TRAVEL 2.5 VS IR COILOVER KIT
• 19-23 RANGER EXT TRAVEL 2.5 VS IR COILOVER KIT

Product Description – Invoice

• 2019-UP RANGER EXT 4WD IR COILOVER KIT
• 91255

AAIA Part Type Description

Coilover Spring and Shock Assembly

“>
