Sale ICON 03-12 Dodge Ram HD 4WD 2.5in Dual Rate Spring Kit

Description

Manufacturer Part # : 212500

Market Description

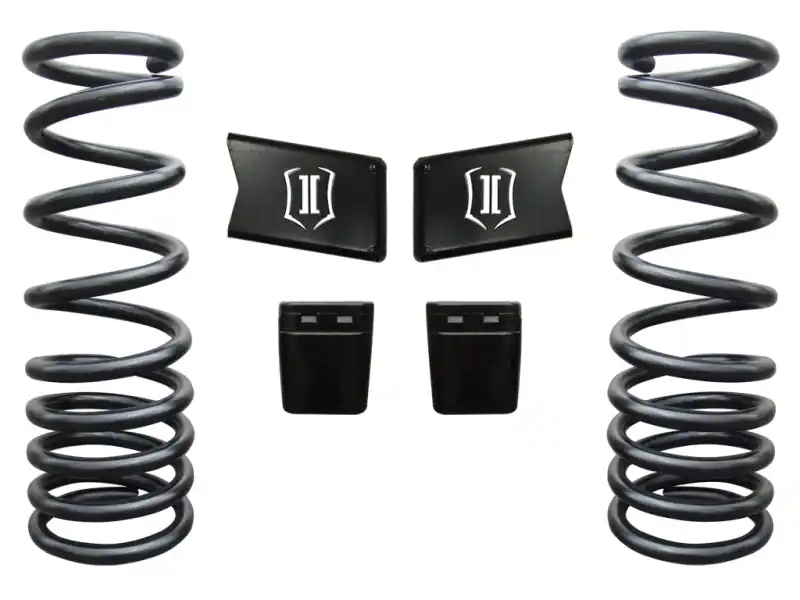

The ICON Vehicle Dynamics 2.5 inch Dual Rate Spring System for 2003 – 2012 Ram 2500 / 3500 4WD levels out your truck and offers you both incredible ride quality and performance. This 2.5 inch dual rate spring system offers an initial soft ride zone with an aggressive 2nd rate to help prevent bottoming out. These ICON springs have a dual stage powder coat process to help prevent corrosion and are shot peened and pre-set to prevent sagging. Also included are longer urethane bumpstops that have a more progressive bottom out, and sway bar drop brackets to compliment the additional travel. Front shocks are required for complete installation and we offer 2.0 Aluminum Series smooth body and Remote Reservoir, or our 2.5 Series Reservoir shock with or without CDC (compression damping control) Valve. All ICON shocks are engineered to be the correct length offering maximum droop and compression travel, then tuned to work hand in hand with these springs for the best available on and offroad performance.

Product Description – Extended

• Beyond the added ground clearance, the dual-rate design of ICON springs provides a softer initial rate for superb on-road comfort and a firmer secondary rate that delivers excellent bottoming resistance and superior off-road performance.
• 2003-2012 RAM HD 4WD 2.5″ LIFT DUAL RATE SPRING KIT

Associated Comments

• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: 8.5″ wide wheel with 5.75″ backspace
• Factory Wheels & Tires Fitment: Yes

Product Description – Short

• ICON 03-12 Dodge Ram HD 4WD 2.5in Dual Rate Spring Kit
• RAM HD FRONT COILS

Features and Benefits

• Increased wheel travel and ride quality over stock
• ICON engineered dual rate coil springs
• No drive shaft modifications needed
• No change in towing capacity
• Level stance front to rear
• Less body roll than stock

Product Description – Long

03-12 RAM HD 4WD 2.5″ DUAL RATE SPRING KIT

Product Description – Invoice

• RAM HD 4WD 2.5″ DUAL RATE SPRING KIT
• 212500

AAIA Part Type Description

Coil Spring Set

“>
