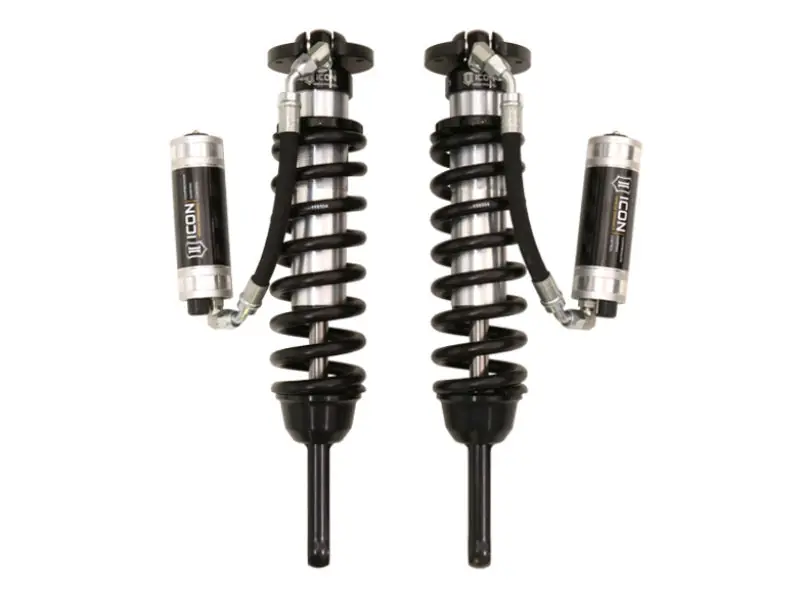

Sale ICON 2005+ Toyota Tacoma 2.5 Series Shocks VS RR CDCV Coilover Kit

Description

Manufacturer Part # : 58730C

Market Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s exclusive Compression Damping Control Valves are included forprecisely dialing in your suspension performance. CDCV controls fluidflow under compression, allowing you to achieve the perfect tune whetherdriving on the street, slow-crawling through the rocks or mobbingacross the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Product Description – Extended

• These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
• 2005-UP TACOMA 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT

Associated Comments

• Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
• TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25″ over stock
• TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25″ over stock
• TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5″ over stock
• Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm Offset
• APPLICATION NOTE #47: 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5.00” Backspace / 0mm Offset
• APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
• TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
• APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
• OEM Wheels & Tires Fitment: Yes

Features and Benefits

• Height-adjustable coilovers offer 0-3.5″ or 0-2.75″ of lift height adjustment depending on year model
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• Vehicle specific tuned for superior shock damping and control
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• Kit Includes Sway bar relocation brackets
• 5/8″ PTFE-lined spherical bearings
• ICON engineered coil springs
• Billet aluminum upper mount
• CAD-plated threaded body
• Completely re-buildable

Product Description – Short

• ICON 2005+ Toyota Tacoma 2.5 Series Shocks VS RR CDCV Coilover Kit
• TACOMA COILOVERS
• COILOVER KIT

Product Description – Invoice

• 05-UP TACOMA 2.5 VS RR CDCV COILOVER KIT
• 58730C

Product Description – Long

05-23 TACOMA 2.5 VS RR CDCV COILOVER KIT

AAIA Part Type Description

Coilover Spring and Shock Assembly

“>
