Seasonal Sale Icon 2024 Lexus GX550 2.5 Series Coilover Kit w/Remote Reservoir CDEV

Description

Manufacturer Part # : 58790E

Market Description

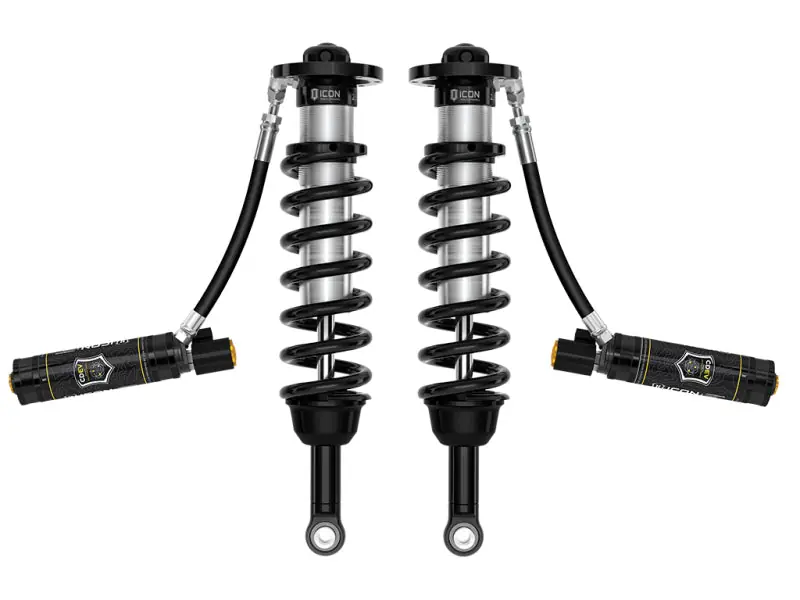

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024 Lexus GX550. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 Aluminum Series CDEV rear shock absorbers, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Lexus GX550.

Product Description – Extended

ICON 2.5 Series front coilover shocks are an incredible upgrade for the Lexus GX550. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance.

Associated Comments

• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• Recommended Aftermarket Tires: 34″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• TECH NOTE: Also requires installation of IIC kit (Part # 53512) and CDEV rear shocks (Part # 57870EP)
• Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 6.6” Backspace / 40mm Offset
• APPLICATION NOTE #177: 4WD/AWD models require front differential drop part # 55156
• TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
• Recommended Aftermarket Wheels: 17×8.5 with 6.32” Backspace / 40mm Offset
• APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
• APPLICATION NOTE #175: Will not fit GX550 Overtrail
• OEM Wheels & Tires Fitment: Yes

Features and Benefits

• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Height-adjustable coilovers offer 1.25-3″ of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8″ diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• 2.5″ diameter shock bodies with remote reservoirs
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Product Description – Short

• Icon 2024 Lexus GX550 2.5 Series Coilover Kit w/Remote Reservoir CDEV
• COILOVER KIT

Product Description – Long

24 GX550 FRONT 2.5 VS CDEV COILOVER KIT

AAIA Part Type Description

Coilover Spring and Shock Assembly

Product Description – Invoice

58790E

“>
