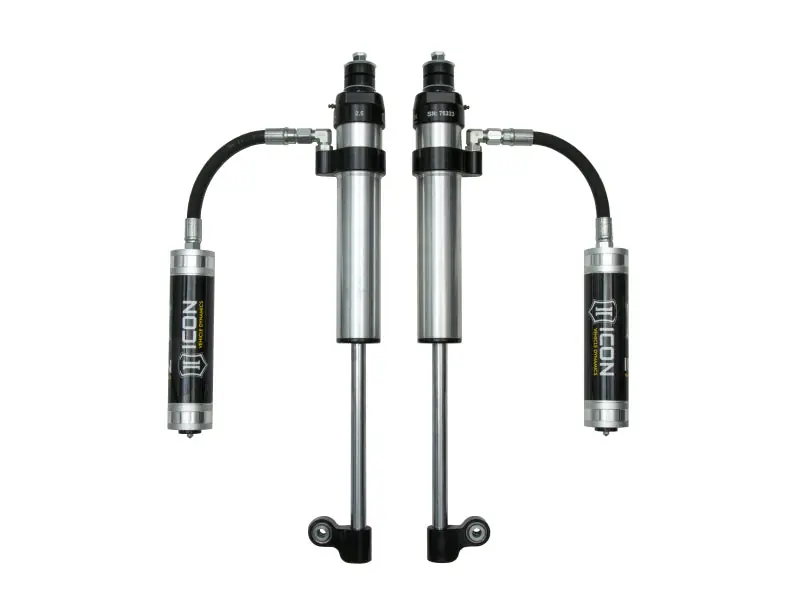

While Supplies Last ICON 2005+ Toyota Tacoma RXT Rear 2.5 Series Shocks RR – Pair

Description

Manufacturer Part # : 57826P

Market Description

• ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON’S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV), Compression Damping Electronic Valve (CDEV), or Omega Series bypass shocks
• ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON’S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or Omega Series bypass shocks

Product Description – Extended

• ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
• 2005-UP TACOMA RXT REAR 2.5 REMOTE RESERVOIR SHOCK PAIR

Features and Benefits

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Rebuildable
• 100% Revalveable

Associated Comments

• TECH NOTE: ICON Multi-Rate Leaf Springs Part # 158505 (QTY of 2) required for installation
• TECH NOTE: Compatible with 0-2.625″ of rear lift provided by ICON Multi-Rate Leaf Springs
• TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
• ICON Multi-Rate Leaf Springs Part # 158505 required for installation

Product Description – Short

• ICON 2005+ Toyota Tacoma RXT Rear 2.5 Series Shocks RR – Pair
• SHOCK ABSORBER PAIR
• TACOMA RXT SHOCKS

Product Description – Invoice

• 2005-UP TACOMA RXT REAR 2.5 RR SHOCKS
• 27826P

Product Description – Long

• 05-23 TACOMA RXT REAR 2.5 VS RR PAIR
• 05-UP TACOMA RXT REAR 2.5 RR PAIR

AAIA Part Type Description

Suspension Shock Absorber Set

“>
